[데시게이터] " Sanplatec" Acrylic Vacuum Desiccator (데시게이터), PMMA: Polymethylmethacrylate Horizontal type

관리자 2023-05-03 14:42:58

0 138

■ 제품코드(CAT No) / 가격표(Price)

CAT No.	Description	단위/갯수
SA0177E	YB-1 : Inner 260250260mm(H) / 2Shelf	EA/1
SA0178E	YB-2 : Inner 260250360mm(H) / 3Shelf	EA/1
SA0179E	YB-3 : Inner 260250460mm(H) / 4Shelf	EA/1
SA0180E	Spare shelf with vent holes	EA/1

■ 용도(Applications)

■ 제품특징(Features)
* Horizontal type: Vacuum gauge & Valve are fitted on side

■ 규격(Specifications)
Inside dimensions(mm)

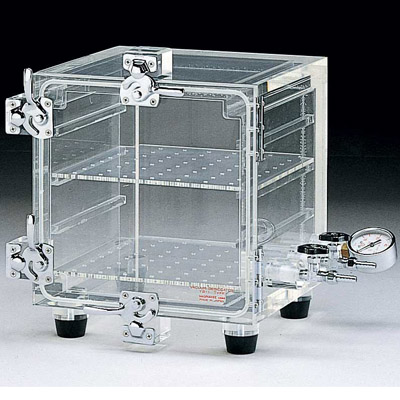

* SA0177E: YB-1 / 260*250*260mm(H) / 2Shelf

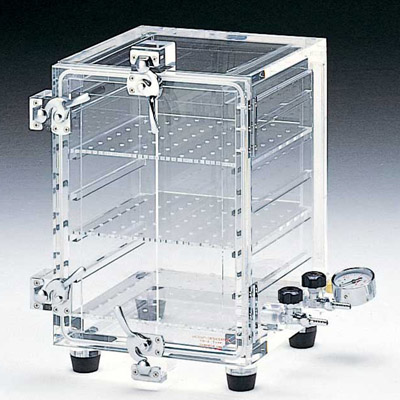

* SA0178E: YB-2 / 260*250*360mm(H) / 3Shelf

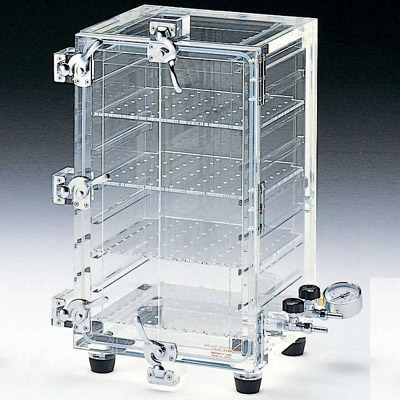

* SA0179E: YB-3 / 260*250*460mm(H) / 4Shelf
* SA0180E: Spare shelf with vent holes
Outside dimensions:
* YB-1....400x320x375mm(H)
* YB-2....400x320x475mm(H)
* YB-3....400x320x590mm(H)
* Plates thickness : YB-1 & YB-2 / 20mm, YB-3 / 25mm
* Accessories : 1 Vacuum gauge (0 to 760mmHG), 2 Needle valves (9.0mm O.D)
* Adjustable shelf positions : YB-1 / 4 levels, YB-2 / 6 levels, YB-3 / 8 levels
